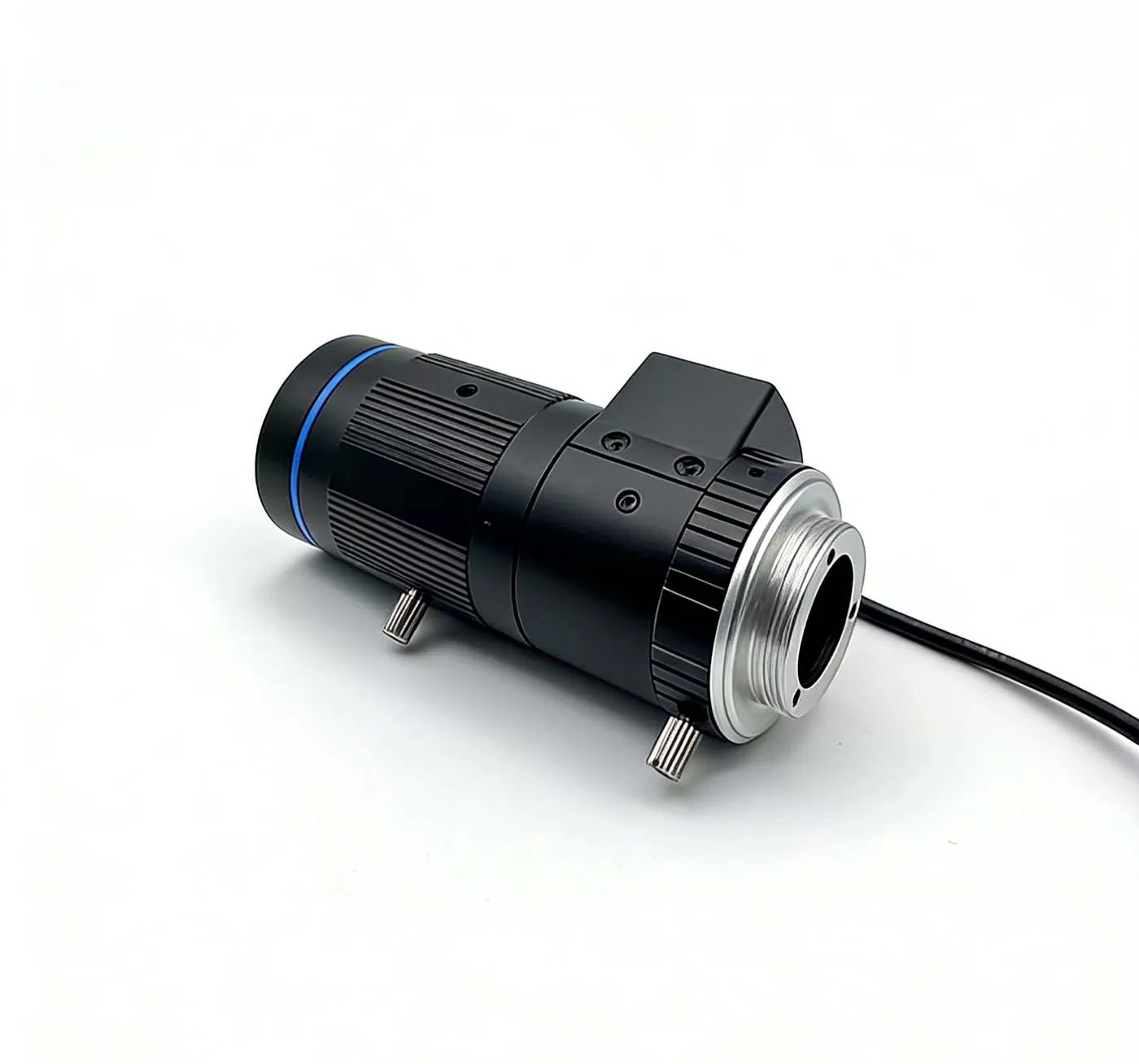

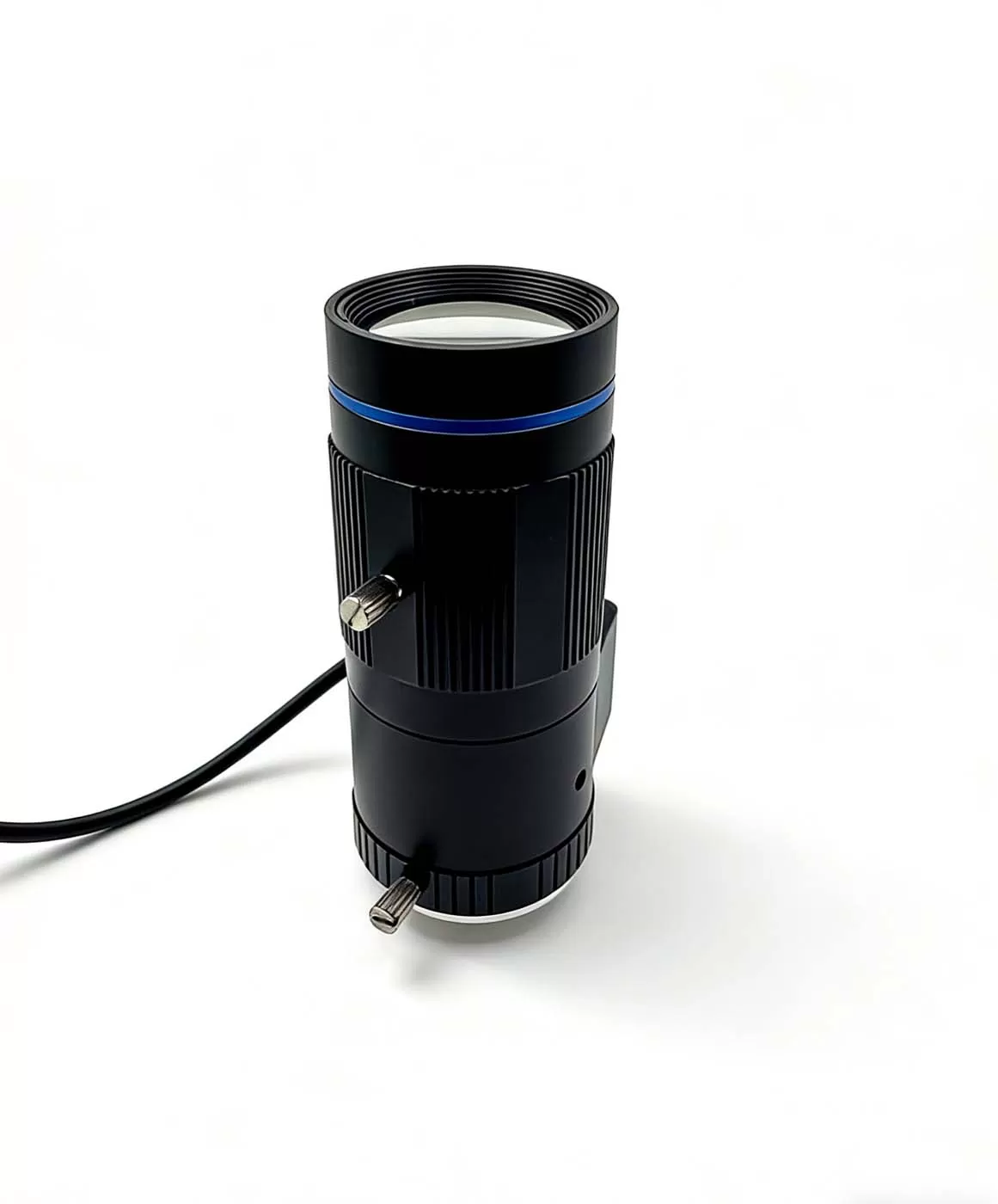

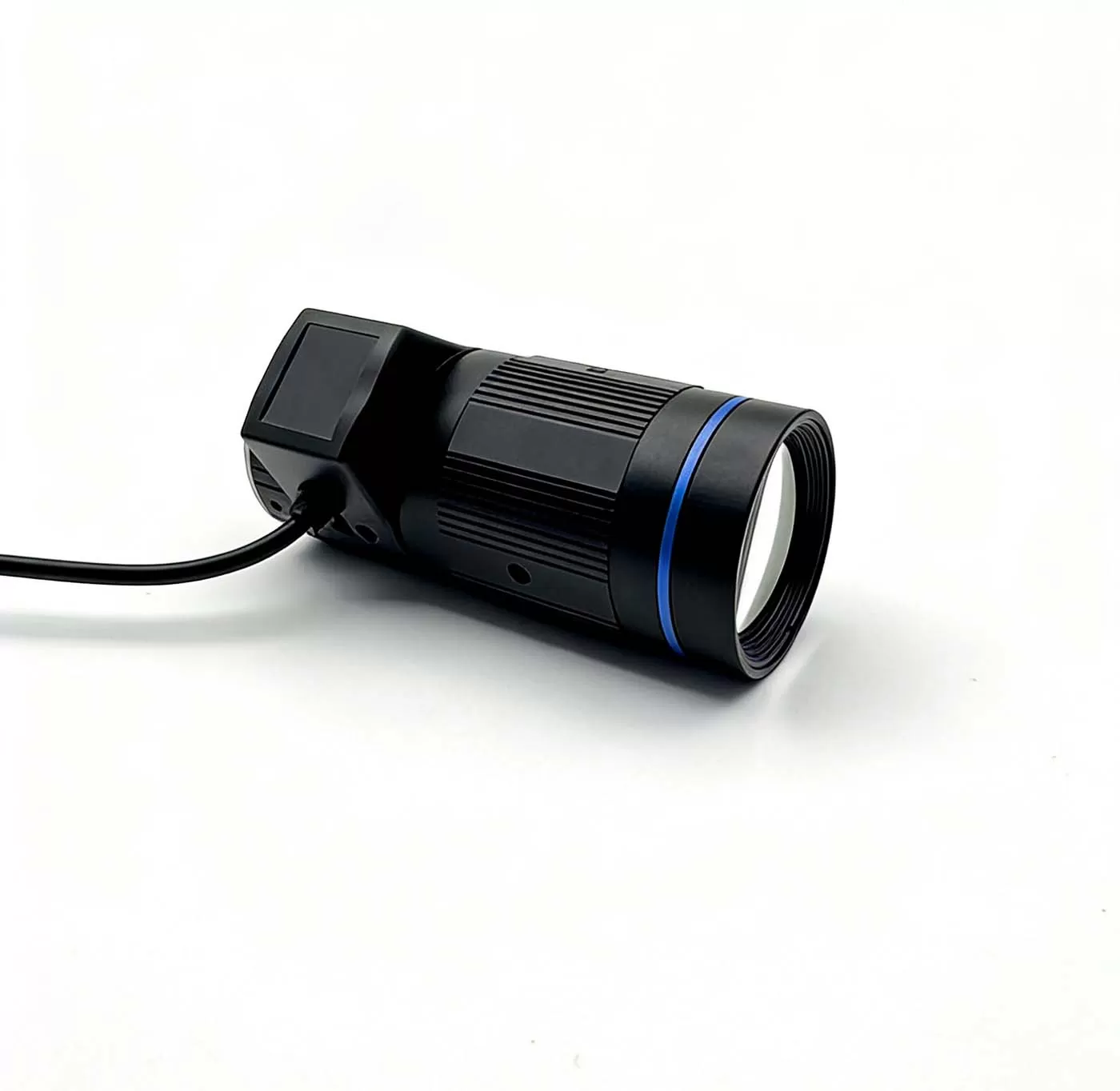

1/2" 30-120mm Auto Iris Zoom Lens CS-Mount 5MP for Security Surveillance Camera

High-Performance CS-Mount Zoom Lens for 1/2″ 5 MP CMOS Sensors

This precision-engineered lens features a 30–120 mm focal length range (4× optical zoom), an F1.6 maximum aperture with DC-driven automatic iris control, and full 5 megapixel (5 MP) optical resolution across the entire focal range. Designed specifically for integration with 1/2″ format 5 MP CMOS image sensors, it delivers consistent edge-to-edge sharpness, minimal chromatic aberration, uniform illumination distribution, and negligible vignetting. The lens employs a robust metal housing and CS-mount interface to ensure mechanical stability, resistance to vibration and thermal drift, and long-term operational reliability in demanding environments. Manual focus and manual zoom mechanisms provide precise optical alignment, while the optimized image circle fully covers the 1/2″ sensor format—eliminating corner darkening and maximizing sensor utilization.

Key Parameters：

• Sensor: 1/2″, 5 MP CMOS
• Zoom: 30–120 mm (4×)

• Resolution: 5 MP (center to edge)

• Mount: CS
• Maximum aperture: F1.6; DC-controlled automatic iris for real-time exposure optimization
• Focus/zoom: Manual
• Environmental resilience: Operating temperature range −30°C to +70°C; IP65-rated dust- and splash-resistant housing; shock- and vibration-tolerant design suitable for indoor and outdoor 24/7 deployment

Primary Application Domains:

• Long-range outdoor surveillance: Perimeter security for industrial facilities, critical infrastructure (e.g., power plants, substations), national borders, and remote natural resource sites
• Intelligent traffic management: Highway monitoring, urban arterial road observation, automated license plate recognition (ALPR), and checkpoint analytics
• Environmental and resource monitoring: Surveillance of mining zones, river basins, forested areas, and protected ecological corridors
• Industrial machine vision: High-accuracy inspection on production lines, remote quality assurance, and automated defect detection
• All-weather network camera systems requiring stable, high-fidelity imaging under dynamic lighting conditions
