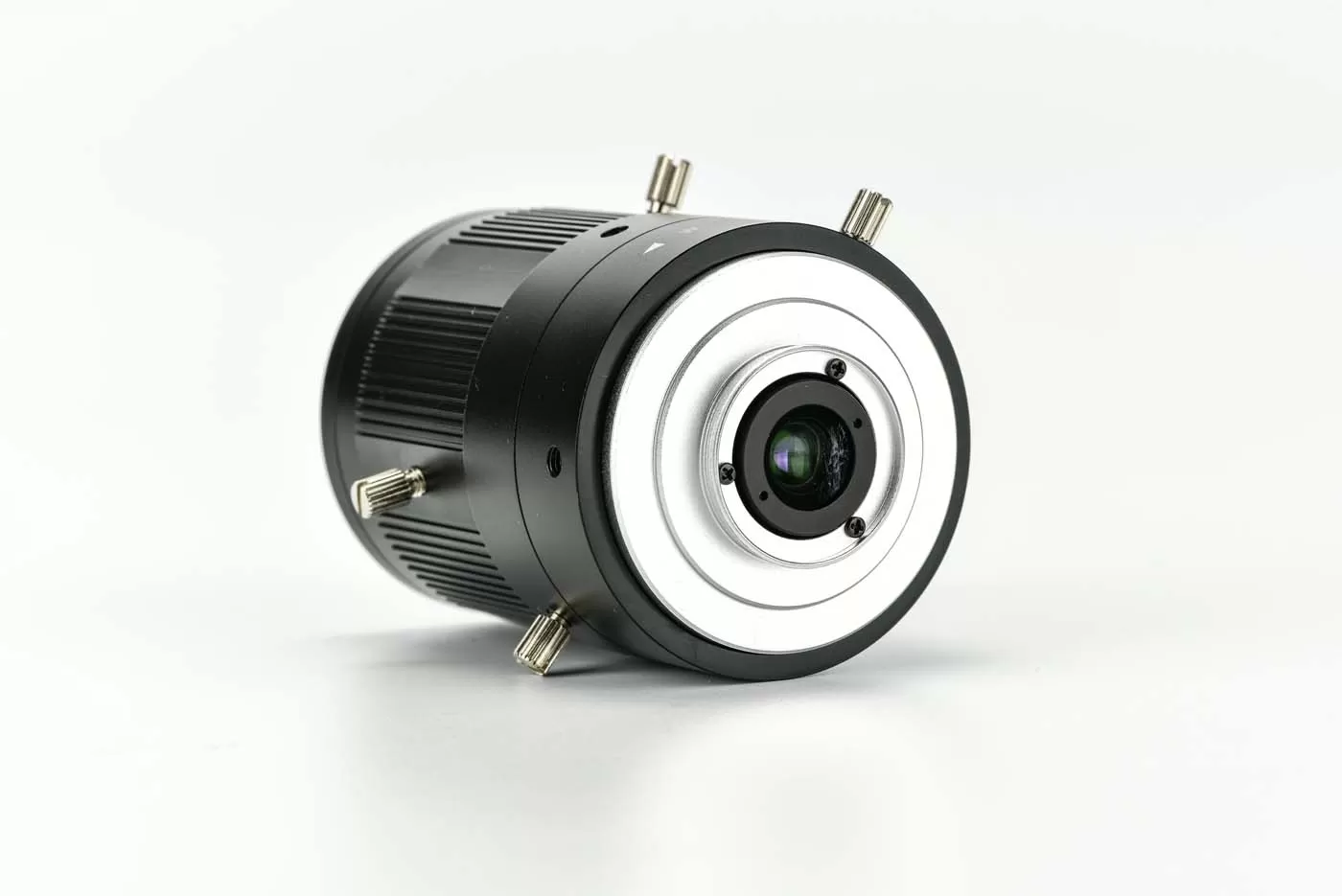

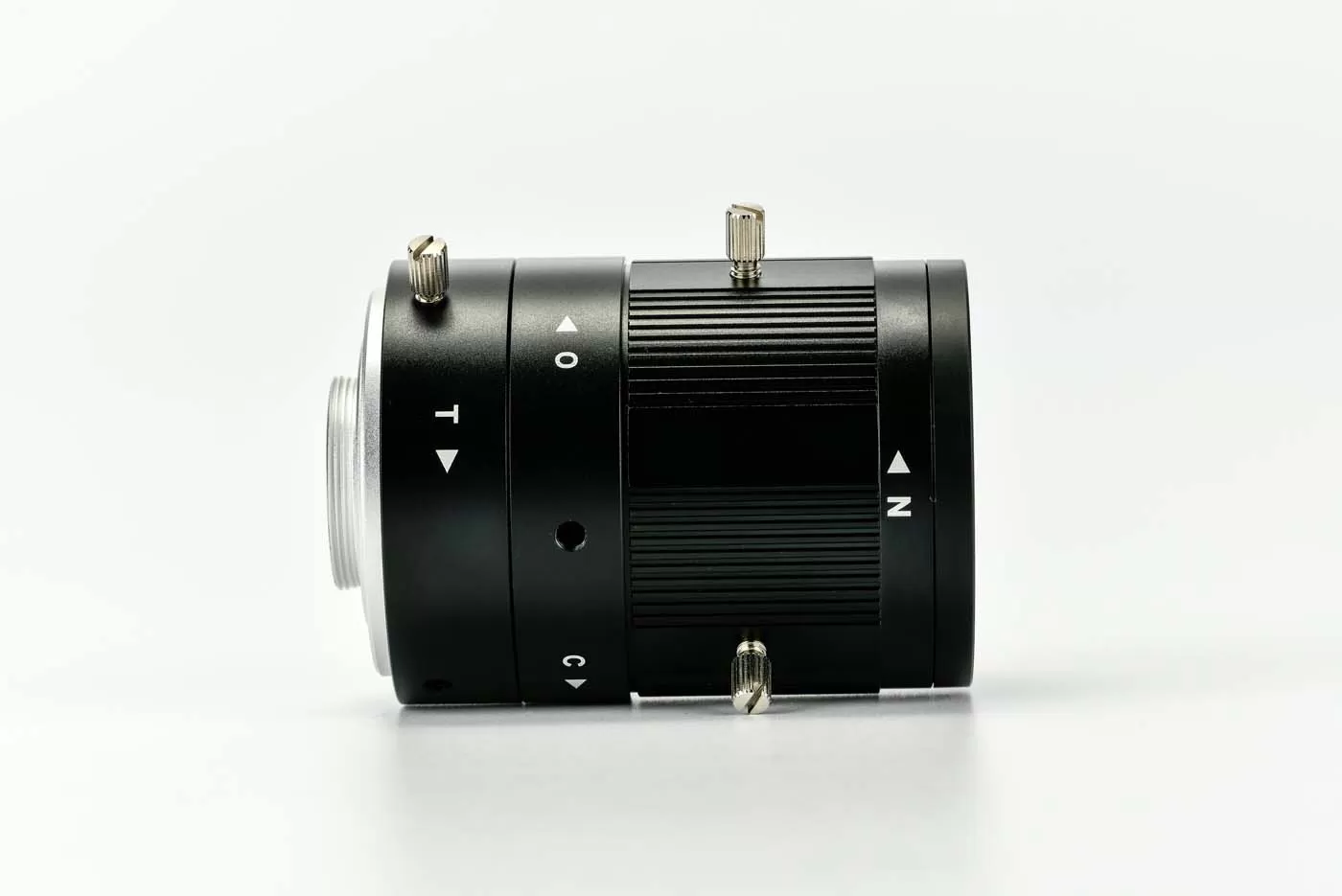

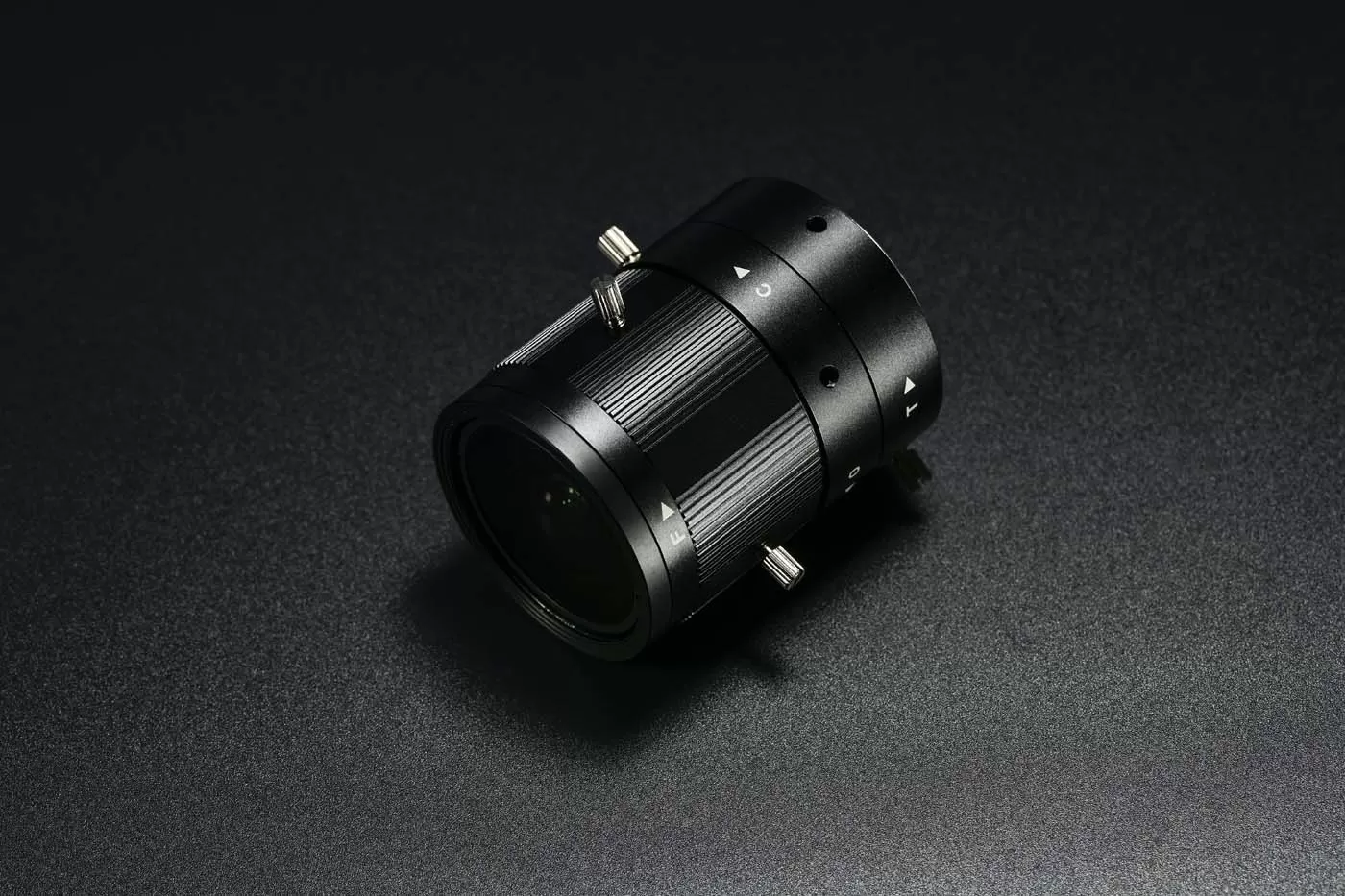

1/1.7" 12MP 3.6-18mm IR correction high-definition zoom ITS lens

This industrial-grade, five-times optical zoom lens—featuring a 1/1.7″ format, 12 megapixel resolution, and a focal length range of 3.6–18 mm—is engineered for high-precision machine vision applications. Designed specifically for compatibility with 1/1.7″ image sensors (maximum diagonal imaging circle: Ø9.4 mm), it delivers optimal optical performance across diverse operational conditions. The lens incorporates a fully optimized optical path to simultaneously support wide-field-of-view surveillance and long-range detail resolution. Key attributes include high-resolution imaging (>12 MP effective resolution), minimal geometric distortion (<0.5% typical="">

Technical Specifications：

• Sensor Format Compatibility: 1/1.7″ (maximum image circle diameter: Ø9.4 mm)
• Effective Resolution: ≥12 megapixels (supporting up to 4000 × 3000 pixel sensors)
• Focal Length Range: 3.6–18 mm (5× continuous optical zoom)

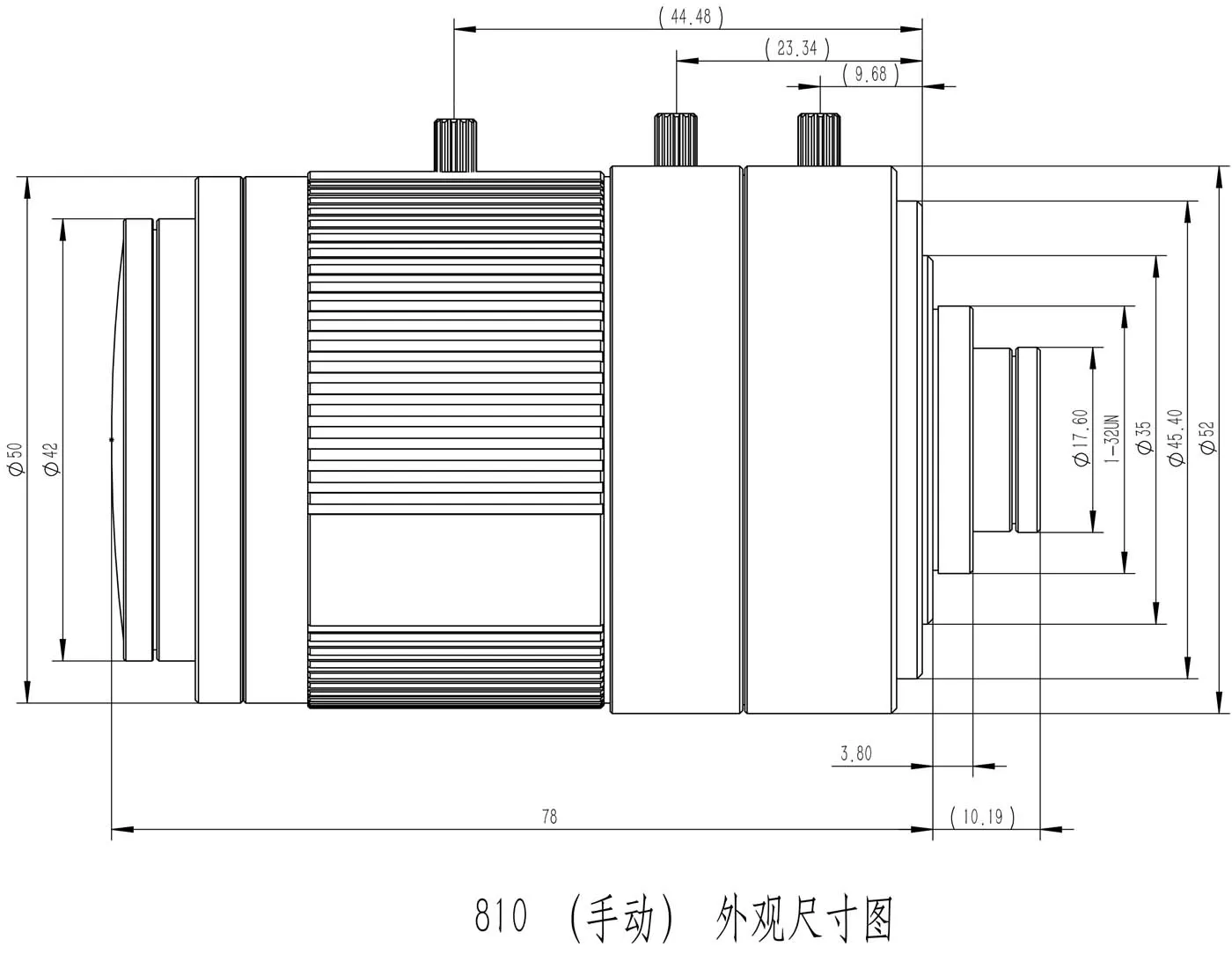

• Mount Interface: Standard C-Mount (1″–32 UNF thread, flange distance: 17.526 mm)
• Optical Design: Achromatic, multi-layer anti-reflection coated glass elements; IR-corrected dual-band focus (day/night parfocal performance)
• Distortion: ≤0.5% (typical, at wide-angle and telephoto extremes)
• Transmission Efficiency: >85% average visible-to-NIR throughput (400–900 nm)
• Focus & Zoom Mechanism: Manual, precision-machined helicoid drive with tactile feedback and locking capability
• Operating Temperature Range: −20 °C to +70 °C (industrial grade, conforming to IEC 60068-2 environmental test standards)
• Housing Material: CNC-machined aluminum alloy body; internal optical components: fused silica and low-dispersion glass

 Primary Application Domains：

• Industrial Machine Vision: Automated defect detection, dimensional metrology, component sorting, robotic guidance, and real-time quality assurance in manufacturing lines
• Intelligent Surveillance Systems: High-fidelity indoor/outdoor monitoring for critical infrastructure—including factory floors, logistics hubs, commercial complexes, and residential communities—with consistent day/night image fidelity
• AI-Powered Edge Devices: Embedded vision modules for facial recognition, behavioral analytics, occupancy sensing, and smart access control terminals
• Transportation & Smart Infrastructure: Vehicle license plate capture at intersections and parking facilities, pedestrian flow analytics in retail and transit environments, and biometric verification at entry points
• R&D and Academic Use: Vision system prototyping, robotics perception research, embedded imaging platform development, and controlled laboratory imaging experiments

Value Proposition：

This lens represents a balanced convergence of four critical engineering priorities: (1) high-fidelity optical performance aligned with modern 12 MP+ CMOS sensors; (2) versatile 5× optical zoom capability without compromise in MTF or field uniformity; (3) universal C-Mount interoperability ensuring plug-and-play deployment across OEM and third-party camera platforms; and (4) robust industrial reliability under variable thermal, mechanical, and illumination conditions. Relative to comparable lenses in its class, it achieves superior cost-performance ratio—delivering enterprise-grade optical consistency while reducing total system integration effort and lifecycle maintenance costs. Its standardized interface, parfocal IR correction, and extended temperature tolerance directly mitigate common industry challenges: sensor-mount mismatch, nighttime defocus drift, thermal-induced misalignment, and costly retrofitting. As such, it serves as the recommended optical solution for mid-tier industrial vision deployments, intelligent security upgrades, and AI-driven edge vision product development.
